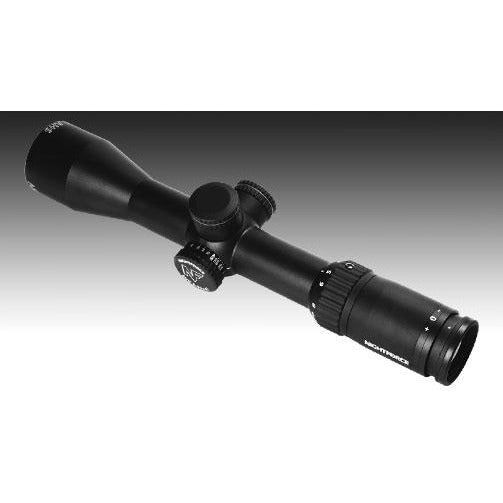

The SHV™ 3-10x42 riflescope is a perfect choice for those wanting value in a small package. The 3-10x magnification range and 42mm objective provide for a practical solution to a wide range of applications from target shooting to big game and varmint hunting.
Offered with a choice of either the Foreceplex™, 4A, or the intelligent MOAR™ reticle; the shooter has the ability to tailor the SHV™ 3-10x42 to their specific shooting application.
STANDARD FEATURES
- 30mm bodytube
- Capped .25 MOA adjustments
- Side parallax adjustment (25 yards to infinity) on the non-illuminated models
|
SPECIFICATIONS
|
SHV 3-10X42
|
|
Focal Plane
|
Second
|
|
Magnification Range
|
3-10x
|
|
Objective lens diameter
|
42mm
|
|
Tube diameter
|
30 mm/1.18 in
|
|
Internal adjustment range (MOA/Mil)
|
e: 90 MOA
w: 80 MOA
N/A
N/A
|
|
Click value
|
.250MOA
N/A
|
|
Calibrated Ranging Power
|
10x
|
|
Parallax adjustment
|
25 yd–∞ (Fixed 125m on illuminated models)
|
|
Exit pupil diameter
|
3x: 10.7 mm
10x: 4.4 mm
|
|
Eye relief
|
88mm/3.5 in
|
|
Field of view @100 yards/100 meters
|
3x: 34.9ft
10x: 11ft
3x: 10.6m
10x: 3.4 m
|
|
Objective outer diameter
|
50 mm
|
|
Eyepiece outer diameter
|
40 mm
|
|
Overall length (inches/mm)
|
11.6 in/295 mm
|
|
Weight (ounces/grams)
|
20.8 oz/590g
|
|
Mounting length (inches/mm)
|
5.1 in/129 mm
|
|
Front/Rear Mounting Length
|
1.74 in/2.05 in
|
|
PTL (Power Throw Lever)
|
Accessory
|
|
Reticles available
|
IHR™
MOAR™
Forceplex™

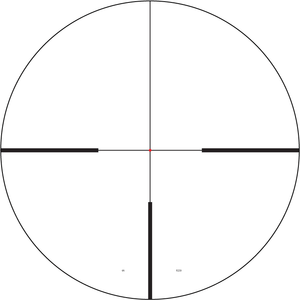

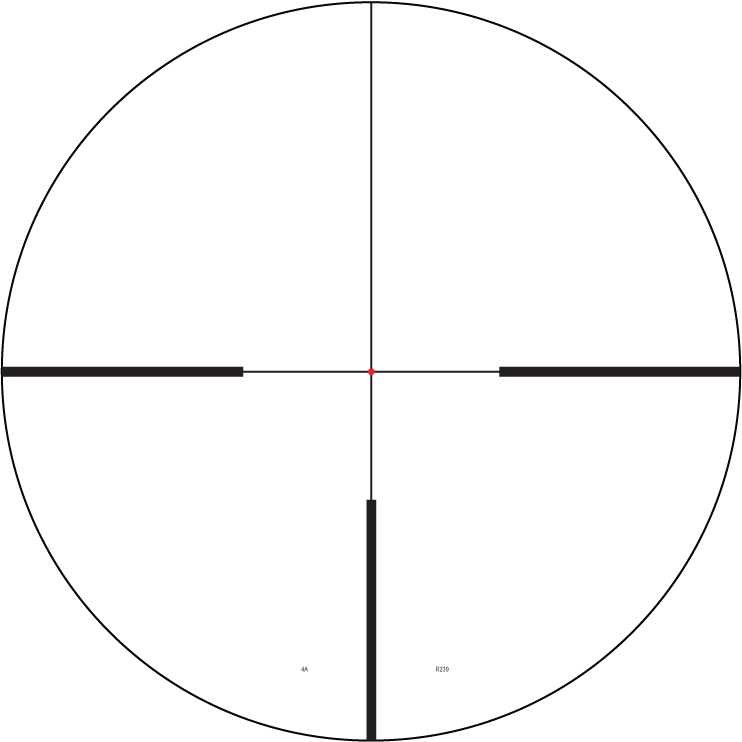

4A
|
|
Illumination
|
Center Illumination (C610 and C611) models
|
|
Elevation Feature
|
Capped, Finger Adjustable
|
